YJE
YJE-01

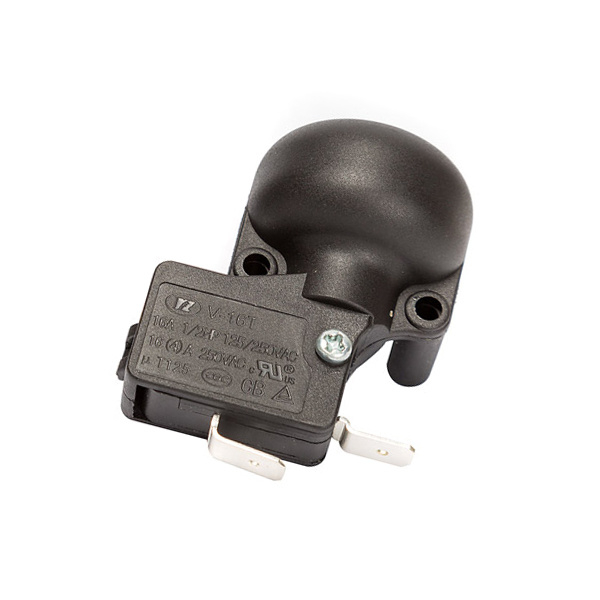

Dumping Micro Switch specifications:
Model: V-16TA
Weight: Approx. 37.9g
Features of Switch:
-Falll-Protect Switch
-Nice Appearance
-Reliable quality
-High sensitivity
Safty Switches Working Principle:
- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.
| Item | Value | ||
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° | ||
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min | ||
| Insulation Resistance | 100 MΩ(500VDC) | ||
Contact Resistance | Gold-plated | Below 15 mΩ | |
| No Gold-plated | 30-40 mΩ | ||
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min | |
| Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts | AC2000V,50/60Hz,1min | ||
| Vibration resistance | 10-55Hz,1.5mm Double amplitude | ||
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or Armor plate horizontal. One time,one side(Up,dowm,left,right,front,back) | ||
| Life Expectancy | Mechnical>=5000000 cycles Electrical>=10000 cycles | ||
| Degree of protection | IEC IP40 | ||
| Degree of protection against electric shock | Class I | ||
| PTI(Tracking Resistance) | 175 | ||
| Ambient air temperature | 125 ºC 60%RH below(No ice and dew) | ||
| Ambient air humidity | 85% Rhbelow(about +5~+35 ºC) | ||
| Weight | Approx.39.7g | ||
