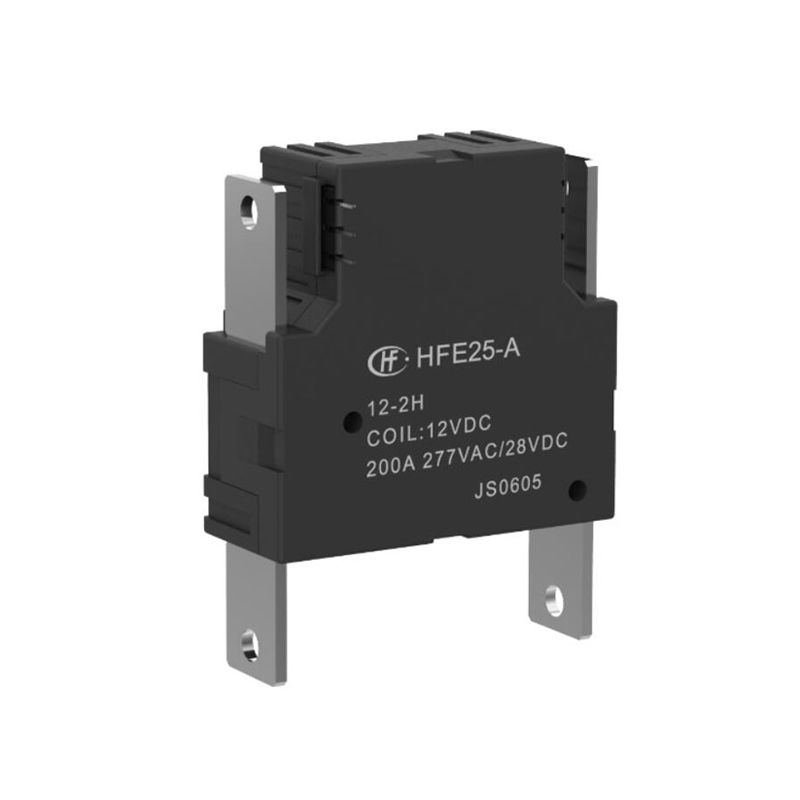

● Latching relay ● 200A switching capability ● According to ANSI C 12.1 (Carrying: 12kA current / 66.7ms; 7kA peak current/100ms ) ● Switching power up to 55.4kVA ● 4kV dielectric strength (between coil and contacts) ● Environmental friendly product (RoHS compliant) ● Outline Dimensions: (73.3 x 74.8 x 29.5) mm
<template class="visibility">
Features

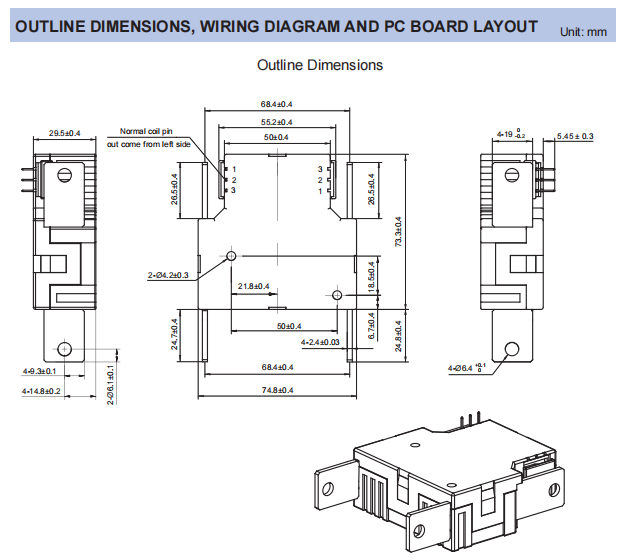

● Latching relay ● 200A switching capability ● According to ANSI C 12.1 (Carrying: 12kA current / 66.7ms; 7kA peak current/100ms ) ● Switching power up to 55.4kVA ● 4kV dielectric strength (between coil and contacts) ● Environmental friendly product (RoHS compliant) ● Outline Dimensions: (73.3 x 74.8 x 29.5) mm
