YJ-V
Ascendant
YJ1029
| Video control center | Sensor type | 1/3"CCD | |||

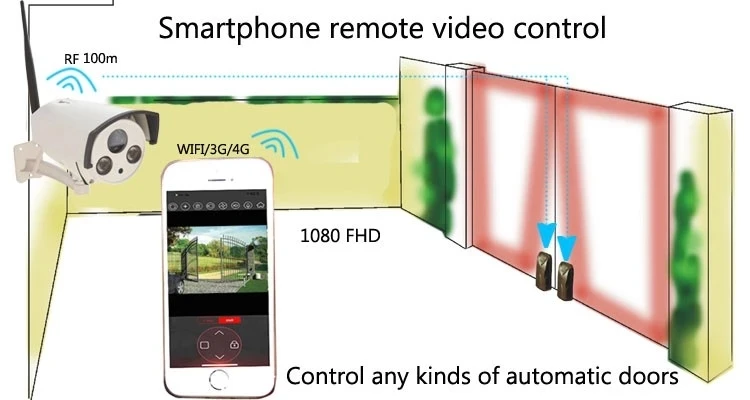

| Network connection method | It can be connected with WIFI. Monitor and operate the video control center through WIFI, 3G/4G. | ||||
| Night vision mode | ICR infrared filter type. | ||||
| Pushing method | Push alarm information to mobile device. | ||||
| Compression standard | Video compression standard | H.264 | |||
| Video compression rat | High definition, balance and fluent, code rate adaptive | ||||
| Audio compression standard | AAC | ||||
| Audio compression rate | Code rate adaptation | ||||
| Image | Definition | 1080P | |||
| Frame rate | 30 F/S | ||||
| Backlight compensation | Support | ||||
| Night vision distance | 8-20 meters | ||||
| Multi-screen technique | Support multiple mobile devices to watch and operate simultaneously. | ||||
| Network function | Storage capabilities | Support Micro SD card (Max 64G) | |||
| A key configuration | SmartConfig | ||||
| Image storage | Local storage | The average storage space for a day is 2 G | |||
| Storage | Users can set up continuous storage, static screen storage, mobile storage, etc., and the storage capacity will change. | ||||

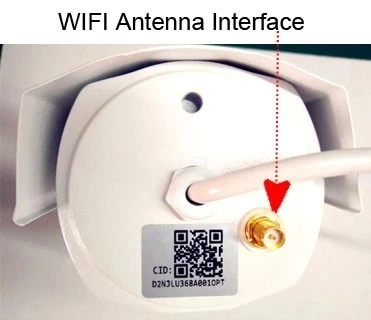

| Wireless parameters | Wireless standards | IEEE802.11b/g/n | |||
| Server connection technology | Using P2P transmission technology. | ||||
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | ||||
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | ||||
| General specifications | Working temperature and humidity | -20℃~60℃, humidity less than 95%(no condensation) | |||
| Power supply | AC100V~AC250V | ||||
| Power consumption | 6W MAX | ||||
