YJ-800KG-3P
Ascendant
YJ1007
Product Description

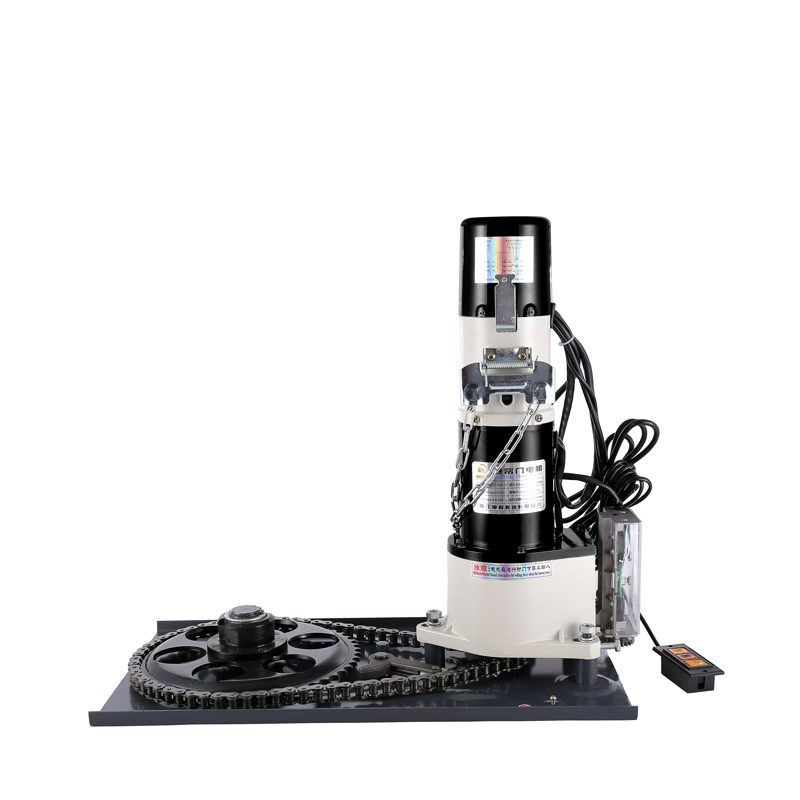

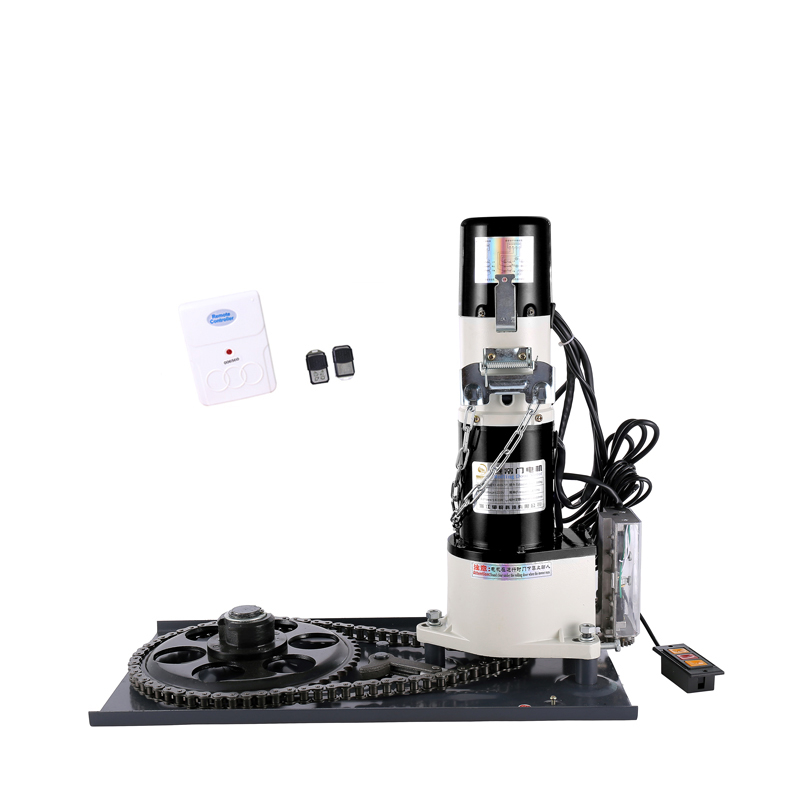

Motorized Door Opener Working environment and conditions:
1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Door Opener Functions:
1) Shell: Aluminium alloy, solid and light;
2) Remote control: Long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Details Images
Label Travel Limit Gears

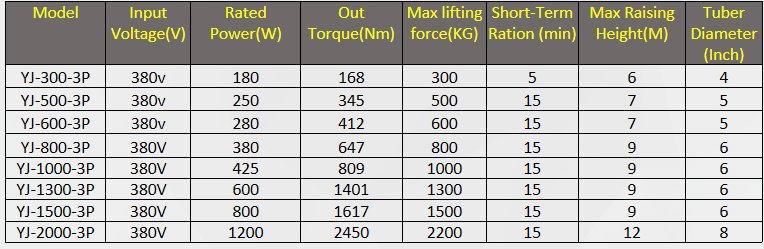

Product Paraments
Application of Rolling Door Motor
Rolling door motor is mainly applicable to all sizes of shutter doors.The principle of its work is to use the motor to drive the roller shutter center axis rotation, to reach the roller shutter switch, when the rotation to the motor set the upper and lower limit automatically stop.Rolling door suitable for home, hotels, Banks, office buildings, hospitals, shops, and so on, the application is very wide. The use of automatic doors, can save air conditioning energy, reduce noise, wind, dust, at the same time it can make our entrance and exit appear solemn high-grade.
FAQ
Q1: What's your Automatic Roll Up Garage Door Opener Range?
1) AC Motor 1 Phase (110V/220V 50Hz)
2) AC Motor 3 Phase (380V 50Hz)
3) AC&DC Motor (24VDC 50Hz)
Q2: What's the material of Motor Winding?
The main material is 100% Copper Wire, and the Aluminum Wire is for optional.
Q3: Is the contractor or relay in the control panel of motor?
Relay, usually there are 4 relays in the control panel of the motor.
Q4: How many days will Door Motor samples be finished? And how about the mass production?
Generally, within one week for Door Motor samples making.
The lead time of mass production will depend on quantity. normally,We finish within 20 days.
Q5: What information should I let you know if I want to get a quotation?
-The Width ,Height and Weight of the Shutter/Door
-The Voltage(220VAC,380VAC or 24VDC)-The Quantity
Q6:Terms of shipping
-By Express: FedEx/DHL/UPS/TNT/EMS,etc.
-Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
-Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
