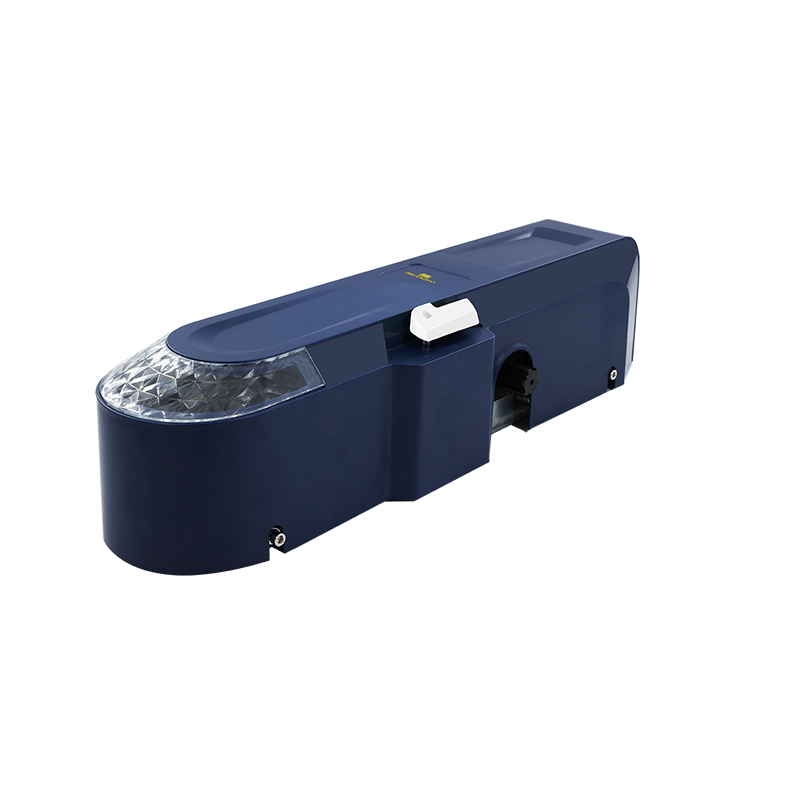

YJ-S
Ascendant
YJ1014
Product Description
Built in control unit with 433.92MHz receiver
Built in LED courtesy light
Keypad / single button interface
Alarm lamp, photo beam & safety beam interface
Mechanical limit switch
Manual key release design for emergency purposes
Installation accessories with pull rod and bush
Available for two door openers mounted on each side of the larger door
Product Paraments
Unit Model | CK300AC | |
Power Supply | AC220V/50Hz | AC110V/60Hz |
Motor Power | 220w | |
Output Torque | 350N.m | |
Door Area | 9 Sq.m | |
Limit Switch | Mechanical limit switch | |
Gate Moving Speed | 20cm/sec. | |
Remote Control Range | ≥30m | |
Recording of Up Remotes | 25 | |
Frequency | 433.92MHz | |
Work Duty | S2 15min | |
Working Temperature | -20℃~+50℃ | |
Package Weight | 14kg | |
Safety System of Garage Door Motor
If the resistance rebound system is encountered, the device can stop the door body when encountering resistance, which not only protects the safety of people and vehicles in and out, but also protects the reliable use of the door; the infrared sensor control system effectively protects people and vehicles , Pets' entry and exit safety; anti-theft alarm system, when someone prying the door, the tweeter will sound an alarm to protect safety. At the same time, it is equipped with a power failure backup battery function, and there is no need to manually open the door after a power failure.
FAQ
Q1: What about Minimal Order?
No MOQ.One PC of Sample is available. Would advice deliver by Express such as DHL,FEDEX,TNT,etc.
Q2: How about your quality control ?
Each motors with quality control before packing.IQC,IPQC,PQC,FQC,all are tested.
Q3: Electric lock is available?
Yes,you can just connect electric lock,no problem.
Q4:Terms of shipping
-By Express: FedEx/DHL/UPS/TNT/EMS,etc.
-Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
-Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
Product Description
Built in control unit with 433.92MHz receiver
Built in LED courtesy light
Keypad / single button interface
Alarm lamp, photo beam & safety beam interface
Mechanical limit switch
Manual key release design for emergency purposes
Installation accessories with pull rod and bush
Available for two door openers mounted on each side of the larger door
Product Paraments
Unit Model | CK300AC | |
Power Supply | AC220V/50Hz | AC110V/60Hz |
Motor Power | 220w | |
Output Torque | 350N.m | |
Door Area | 9 Sq.m | |
Limit Switch | Mechanical limit switch | |
Gate Moving Speed | 20cm/sec. | |
Remote Control Range | ≥30m | |
Recording of Up Remotes | 25 | |
Frequency | 433.92MHz | |
Work Duty | S2 15min | |
Working Temperature | -20℃~+50℃ | |
Package Weight | 14kg | |
Safety System of Garage Door Motor
If the resistance rebound system is encountered, the device can stop the door body when encountering resistance, which not only protects the safety of people and vehicles in and out, but also protects the reliable use of the door; the infrared sensor control system effectively protects people and vehicles , Pets' entry and exit safety; anti-theft alarm system, when someone prying the door, the tweeter will sound an alarm to protect safety. At the same time, it is equipped with a power failure backup battery function, and there is no need to manually open the door after a power failure.
FAQ
Q1: What about Minimal Order?
No MOQ.One PC of Sample is available. Would advice deliver by Express such as DHL,FEDEX,TNT,etc.
Q2: How about your quality control ?
Each motors with quality control before packing.IQC,IPQC,PQC,FQC,all are tested.
Q3: Electric lock is available?
Yes,you can just connect electric lock,no problem.
Q4:Terms of shipping
-By Express: FedEx/DHL/UPS/TNT/EMS,etc.
-Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
-Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
