| Quantity: | |
|---|---|
YJEX-600KG
Ascendant
Models
Shipping list
1 set Explosion-proof motor
1 set Fire and explosion-proof shutter control box
1 copy of the instruction manual
1 product certificate
4 explosion-proof hoses
1 explosion-proof button
Product introduction

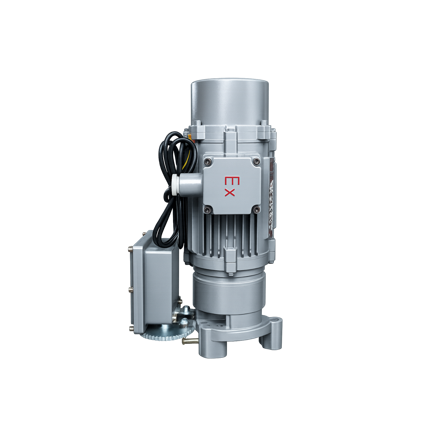

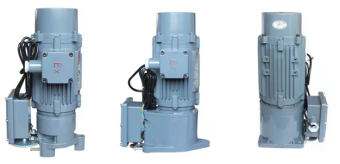

The YJEX series explosion-proof fire shutter door motor has the advantages of small size, light weight, beautiful appearance, safe and reliable operation, long life, excellent performance, and convenient installation, use and maintenance.
It is mainly applied in Boiler room, Cold storage, Chemical plant, Military warehouse and other places that need to be inflammable and explosive.
The power level and installation dimensions of the motor conform to the International Electrotechnical Commission (IEC) standard, and the corresponding relationship is the same as the German DIN42673 standard, which is beneficial to the matching of export equipment and the spare parts of imported equipment.
The explosion-proof performance of the motor complies with the provisions of GB3836.1-2010 "Electrical Equipment for Intensive Gas Environments Part 1: General Requirements" and GB3836.2-2010 "Electrical Equipment for Intensive Gas Environments Part 2: Flameproof "d"". Also in line with IEC79-1, BS4683 and EN50018 regulations, made of flameproof type. The explosion-proof mark is ExdIIBT4, which is suitable for coal mine underground (non-excavation working face) and factory IIB level. The temperature group is the hazardous location of the T4 gas environment.
Performance characteristics
Beautiful and exquisite appearance, compact structure and strong power
Using imported electrical components, safe and stable
Low noise, small vibration, low power consumption and light weight
Easy installation, long life and strong reliability
Manual operation is convenient when the power is cut off
Parameters
Model | EX-600kg | EX-800kg | EX-1000kg | EX-1500kg |
Working Voltage | 380V/220V 3P | 380V/220V 3P | 380V/220V 3P | 380V 3P |
Power | 370W | 550W | 550W | 590W |
Max lift weight | 600kg | 800kg | 1000kg | 1500kg |
Max lift height | 9m | 9m | 9m | 9m |
Limit error | ≤20mm | ≤20mm | ≤20mm | ≤20mm |
Drive sprocket | 5”47T | 5”54T | 6”50T | 6”57T |
Chain specification | 10A/66L | 10A/74L | 12A/68L | 12A/82L |
Braking glide distance | ≤5mm | ≤5mm | ≤5mm | ≤5mm |
Constant working time | 30min | |||
Protection class | IP55 | |||
