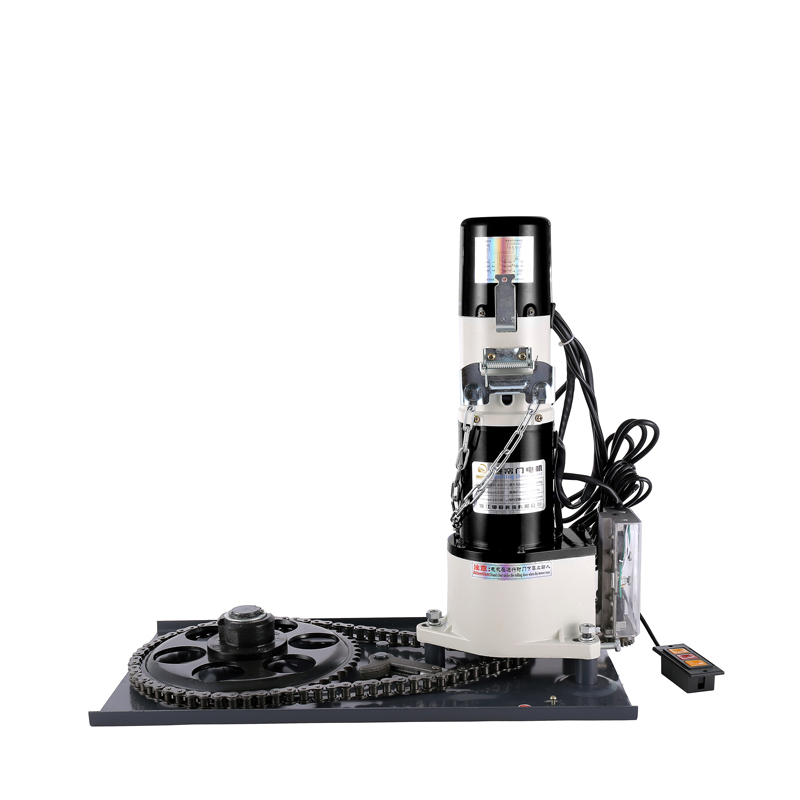

YJ-1000KG-1P
Ascendant
MODEL | YJ-1000KG-1P |
ACCESSORY LIST | Bracket / Side board / UCF bearing / 6” plates / Shaft / Lock box / Remote control set |
VOLTS | 230VAC |
FREQUENCY | 50Hz |
PHASE | 1 |
REVOLUTION PER MINUTE (r.p.m) | 4.4r/min |
IP | 45 |
DUTY | S2 |
RATED POWER | 500W |
RATED TORQUE | 809N.m |
LIFTING WEIGHT | 1000KG |
LIFTING HEIGHT | 9M |
OPERATION TIME | 8min |
INDUSTRIAL CLASS | B |
TEMP | -15°C ~ 45°C |
| Automatically: by push button/ controller/ wireless wall switch/phone(need to match Wifi receiver) Manually: by pulling manual chain or clutch lever |
